封装电源
封装电源，功率：3-90W， 该类型产品具有小体积，输入电压范围宽，空载功耗低，有DIP、SIP等多种封装形式。 ● 全球输入电压范围，电压范围可达85-305VAC ● 满足相应的安规过及EMC特性。 ● 满足 IEC62368、UL62368、EN62368 等标准 ——主要应用于工业、电力、充电桩、仪表、通讯及智能楼宇等多个领域。
| 型号 | 缩略图 | 输出功率 | 输入电压 | 输出电压 | 输出电流 | 输出路数 | 隔离电压 | 封装形式 | 外形尺寸mm | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AE |
|
3-5W | 85-264VAC/100-370VDC | 展开 | 展开 | 1 | 4000VDC | DIP | |||

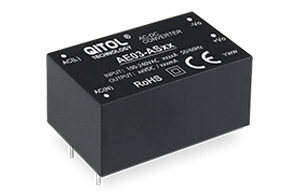

| AE03-AS03 |
|
3W | 85-264VAC/100-370VDC | 3.3VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS05 |
|
3W | 85-264VAC/100-370VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS09 |
|
3W | 85-264VAC/100-370VDC | 9VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS12 |
|
3W | 85-264VAC/100-370VDC | 12VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS15 |
|
3W | 85-264VAC/100-370VDC | 15VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS24 |
|
3W | 85-264VAC/100-370VDC | 24VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW |
|
2-60W | 85-305VAC/100-430VDC | 展开 | 展开 | 1 | 4000VDC | DIP | |||

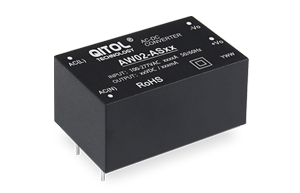

| AW02-AS03 |
|
2W | 85-305VAC/100-430VDC | 3.3VDC | 610mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS05 |
|
2W | 85-305VAC/100-430VDC | 5VDC | 400mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS09 |
|
2W | 85-305VAC/100-430VDC | 9VDC | 225mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS12 |
|
2W | 85-305VAC/100-430VDC | 12VDC | 170mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS15 |
|
2W | 85-305VAC/100-430VDC | 15VDC | 135mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS24 |
|
2W | 85-305VAC/100-430VDC | 24VDC | 85mA | 1 | 4000VDC | DIP | 32.5*20.5*15 |
