| 型号 | 缩略图 | 输出功率 | 输入电压 | 输出电压 | 输出电流 | 输出路数 | 隔离电压 | 封装形式 | 外形尺寸mm | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|---|

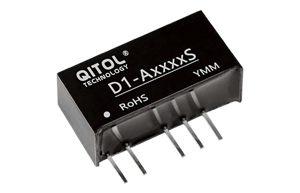

| D1-A0324S |
|
1W | 3.3 (3.0-3.6)VDC | ±24VDC | ±21mA | 2 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-A0303S |
|
1W | 3.3 (3.0-3.6)VDC | ±3.3VDC | ±152mA | 2 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-A0305S |
|
1W | 3.3 (3.0-3.6)VDC | ±5VDC | ±100mA | 2 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-A0309S |
|
1W | 3.3 (3.0-3.6)VDC | ±9VDC | ±56mA | 2 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-A0312S |
|
1W | 3.3 (3.0-3.6)VDC | ±12VDC | ±42mA | 2 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-A0315S |
|
1W | 3.3 (3.0-3.6)VDC | ±15VDC | ±34mA | 2 | 1500VDC | SIP | 19.65*6.0*10.16 | ||

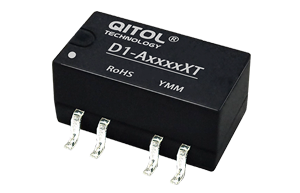

| D1-A0303XT |
|
1W | 3.3 (3.0-3.6)VDC | ±3.3VDC | ±152mA | 2 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-A0305XT |
|
1W | 3.3 (3.0-3.6)VDC | ±5VDC | ±200mA | 2 | 1500VDC | SMD | 13.2*11.4*7.25 | ||

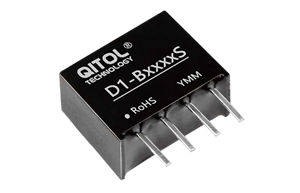

| D1-B0303S |
|
1W | 3.3 (3.0-3.6)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D1-B0305S |
|
1W | 3.3 (3.0-3.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D1-B0309S |
|
1W | 3.3 (3.0-3.6)VDC | 9VDC | 200mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D1-B0312S |
|
1W | 3.3 (3.0-3.6)VDC | 12VDC | 200mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D1-B0315S |
|
1W | 3.3 (3.0-3.6)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||
| D1-B0324S |
|
1W | 3.3 (3.0-3.6)VDC | 24VDC | 42mA | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||

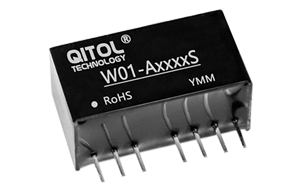

| W01-A0503S |
|
1W | 5（4.5-9）VDC | ±3.3VDC | ±150mA | 2 | 1500VDC | SIP | 22.0*9.5*12.0 | ||

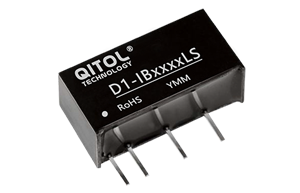

| D1-IB0503LS |
|
1W | 5 (4.5-5.5)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0505LS |
|
1W | 5 (4.5-5.5)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| V06-A1205Y |
|
6W | 12 (9-18)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1212Y |
|
6W | 12 (9-18)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1215Y |
|
6W | 12 (9-18)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 |
