产品中心DC/DC 电源定电压输入 非稳压输出 SIP

定电压输入 非稳压输出 SIP

该系列产品有单路、正负双路，多种隔离电压可选， 主要特点： ◆ 工作温度范围可满足：-40 to +85℃ ◆ 隔离电压可满足：1000VDC-3000VDC ◆ 符合 UL62368 认证、通过 EN62368 认证 ——广泛应用于： 工业控制通信、电力、仪器仪表、医疗电子、轨道交通等多个行业。

型号 缩略图 输出功率 输入电压 输出电压 输出电流 输出路数 隔离电压 封装形式 外形尺寸mm 规格书 样品申请
D1-A_S 1W 3.0-26.4VDC 展开 展开 2 1500VDC SIP 19.65*6.0*10.16
D1-A0303S 1W 3.3 (3.0-3.6)VDC ±3.3VDC ±152mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0305S 1W 3.3 (3.0-3.6)VDC ±5VDC ±100mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0309S 1W 3.3 (3.0-3.6)VDC ±9VDC ±56mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0312S 1W 3.3 (3.0-3.6)VDC ±12VDC ±42mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0315S 1W 3.3 (3.0-3.6)VDC ±15VDC ±34mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0324S 1W 3.3 (3.0-3.6)VDC ±24VDC ±21mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0503S 1W 5 (4.5-5.5)VDC ±3.3VDC ±152mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0505S 1W 5 (4.5-5.5)VDC ±5VDC ±100mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0509S 1W 5 (4.5-5.5)VDC ±9VDC ±56mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0512S 1W 5 (4.5-5.5)VDC ±12VDC ±42mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0515S 1W 5 (4.5-5.5)VDC ±15VDC ±34mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A0524S 1W 5 (4.5-5.5)VDC ±24VDC ±21mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1203S 1W 12 (10.8-13.2)VDC ±3.3VDC ±152mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1205S 1W 12 (10.8-13.2)VDC ±5VDC ±100mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1209S 1W 12 (10.8-13.2)VDC ±9VDC ±56mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1212S 1W 12 (10.8-13.2)VDC ±12VDC ±42mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1215S 1W 12 (10.8-13.2)VDC ±15VDC ±34mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1224S 1W 12 (10.8-13.2)VDC ±24VDC ±21mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1503S 1W 15 (13.5-16.5)VDC ±3.3VDC ±152mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1505S 1W 15 (13.5-16.5)VDC ±5VDC ±100mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1509S 1W 15 (13.5-16.5)VDC ±9VDC ±56mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1512S 1W 15 (13.5-16.5)VDC ±12VDC ±42mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1515S 1W 15 (13.5-16.5)VDC ±15VDC ±34mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A1524S 1W 15 (13.5-16.5)VDC ±24VDC ±21mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A2403S 1W 24 (21.6-26.4)VDC ±3.3VDC ±152mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A2405S 1W 24 (21.6-26.4)VDC ±5VDC ±100mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A2409S 1W 24 (21.6-26.4)VDC ±9VDC ±56mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A2412S 1W 24 (21.6-26.4)VDC ±12VDC ±42mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A2415S 1W 24 (21.6-26.4)VDC ±15VDC ±34mA 2 1500VDC SIP 19.65*6.0*10.16
D1-A2424S 1W 24 (21.6-26.4)VDC ±24VDC ±21mA 2 1500VDC SIP 19.65*6.0*10.16

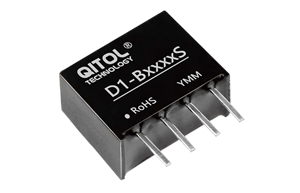

D1-B_S 1W 3.0-26.4VDC 展开 展开 1 1500VDC SIP 11.6*6.0*10.16
D1-B0303S 1W 3.3 (3.0-3.6)VDC 3.3VDC 303mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0305S 1W 3.3 (3.0-3.6)VDC 5VDC 200mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0309S 1W 3.3 (3.0-3.6)VDC 9VDC 111mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0312S 1W 3.3 (3.0-3.6)VDC 12VDC 83mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0315S 1W 3.3 (3.0-3.6)VDC 15VDC 67mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0324S 1W 3.3 (3.0-3.6)VDC 24VDC 42mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0503S 1W 5 (4.5-5.5)VDC 3.3VDC 303mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0505S 1W 5 (4.5-5.5)VDC 5VDC 200mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0509S 1W 5 (4.5-5.5)VDC 9VDC 111mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0512S 1W 5 (4.5-5.5)VDC 12VDC 83mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0515S 1W 5 (4.5-5.5)VDC 15VDC 67mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B0524S 1W 5 (4.5-5.5)VDC 24VDC 42mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1203S 1W 12(10.8-13.2)VDC 3.3VDC 303mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1205S 1W 12(10.8-13.2)VDC 5VDC 200mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1209S 1W 12(10.8-13.2)VDC 9VDC 111mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1212S 1W 12(10.8-13.2)VDC 12VDC 83mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1215S 1W 12(10.8-13.2)VDC 15VDC 67mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1224S 1W 12(10.8-13.2)VDC 24VDC 42mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1503S 1W 15(13.5-16.5)VDC 3.3VDC 303mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1505S 1W 15(13.5-16.5)VDC 5VDC 200mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1509S 1W 15(13.5-16.5)VDC 9VDC 111mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1512S 1W 15(13.5-16.5)VDC 12VDC 83mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1515S 1W 15(13.5-16.5)VDC 15VDC 67mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B1524S 1W 15(13.5-16.5)VDC 24VDC 42mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B2403S 1W 24(21.6-26.4)VDC 3.3VDC 303mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B2405S 1W 24(21.6-26.4)VDC 5VDC 200mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B2409S 1W 24(21.6-26.4)VDC 9VDC 111mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B2412S 1W 24(21.6-26.4)VDC 12VDC 83mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B2415S 1W 24(21.6-26.4)VDC 15VDC 67mA 1 1500VDC SIP 11.6*6.0*10.16
D1-B2424S 1W 24(21.6-26.4)VDC 24VDC 42mA 1 1500VDC SIP 11.6*6.0*10.16

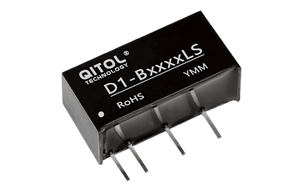

D1-B_LS 1W 3.0-26.4VDC 展开 展开 1 1500VDC SIP 19.65*6.0*10.16
D1-B0303LS 1W 3.3（3.0-3.6)VDC 3.3VDC 303mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0305LS 1W 3.3（3.0-3.6)VDC 5VDC 200mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0309LS 1W 3.3（3.0-3.6)VDC 9VDC 111mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0312LS 1W 3.3（3.0-3.6)VDC 12VDC 83mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0315LS 1W 3.3（3.0-3.6)VDC 15VDC 67mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0324LS 1W 3.3（3.0-3.6)VDC 24VDC 42mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0503LS 1W 5（4.5-5.5)VDC 3.3VDC 303mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0505LS 1W 5（4.5-5.5)VDC 5VDC 200mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0509LS 1W 5（4.5-5.5)VDC 9VDC 111mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0512LS 1W 5（4.5-5.5)VDC 12VDC 83mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0515LS 1W 5（4.5-5.5)VDC 15VDC 67mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B0524LS 1W 5（4.5-5.5)VDC 24VDC 42mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1203LS 1W 12（10.8-13.2)VDC 3.3VDC 303mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1205LS 1W 12（10.8-13.2)VDC 5VDC 200mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1209LS 1W 12（10.8-13.2)VDC 9VDC 111mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1212LS 1W 12（10.8-13.2)VDC 12VDC 83mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1215LS 1W 12（10.8-13.2)VDC 15VDC 67mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1224LS 1W 12（10.8-13.2)VDC 24VDC 42mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1503LS 1W 15（13.5-16.5)VDC 3.3VDC 303mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1505LS 1W 15（13.5-16.5)VDC 5VDC 200mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1509LS 1W 15（13.5-16.5)VDC 9VDC 111mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1512LS 1W 15（13.5-16.5)VDC 12VDC 83mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1515LS 1W 15（13.5-16.5)VDC 15VDC 67mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B1524LS 1W 15（13.5-16.5)VDC 24VDC 42mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B2403LS 1W 24（21.6-26.4)VDC 3.3VDC 303mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B2405LS 1W 24（21.6-26.4)VDC 5VDC 200mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B2409LS 1W 24（21.6-26.4)VDC 9VDC 111mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B2412LS 1W 24（21.6-26.4)VDC 12VDC 83mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B2415LS 1W 24（21.6-26.4)VDC 15VDC 67mA 1 1500VDC SIP 19.65*6.0*10.16
D1-B2424LS 1W 24（21.6-26.4)VDC 24VDC 42mA 1 1500VDC SIP 19.65*6.0*10.16
