产品中心DC/DC 电源定电压输入 非稳压输出 SMD

定电压输入 非稳压输出 SMD

该系列为表贴SMD封装，有单路、正负双路，多种隔离电压可选。 主要特点： ● 工作温度范围可满足：-40 to +105℃ ● 隔离电压可满足：1000VDC、3000VDC ● 符合 UL62368 认证、通过 EN62368 认证 ——应用于工业控制及通信、电力电子、仪器仪表、医疗电子、轨道交通等多个行业。

型号 缩略图 输出功率 输入电压 输出电压 输出电流 输出路数 隔离电压 封装形式 外形尺寸mm 规格书 样品申请
D1-A_XT 1W 3-26.4VDC 展开 展开 2 1500VDC SMD 15.24*11.4*7.25
D1-A0303XT 1W 3.3 (3.0-3.6)VDC ±3.3VDC ±152mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0305XT 1W 3.3 (3.0-3.6)VDC ±5VDC ±100mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0309XT 1W 3.3 (3.0-3.6)VDC ±9VDC ±56mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0312XT 1W 3.3 (3.0-3.6)VDC ±12VDC ±42mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0315XT 1W 3.3 (3.0-3.6)VDC ±15VDC ±34mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0324XT 1W 3.3 (3.0-3.6)VDC ±24VDC ±21mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0503XT 1W 5 (4.5-5.5)VDC ±3.3VDC ±152mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0505XT 1W 5 (4.5-5.5)VDC ±5VDC ±100mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0509XT 1W 5 (4.5-5.5)VDC ±9VDC ±56mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0512XT 1W 5 (4.5-5.5)VDC ±12VDC ±42mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0515XT 1W 5 (4.5-5.5)VDC ±15VDC ±34mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A0524XT 1W 5 (4.5-5.5)VDC ±24VDC ±21mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1203XT 1W 12 (10.8-13.2)VDC ±3.3VDC ±152mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1205XT 1W 12 (10.8-13.2)VDC ±5VDC ±100mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1209XT 1W 12 (10.8-13.2)VDC ±9VDC ±56mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1212XT 1W 12 (10.8-13.2)VDC ±12VDC ±42mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1215XT 1W 12 (10.8-13.2)VDC ±15VDC ±34mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1224XT 1W 12 (10.8-13.2)VDC ±24VDC ±21mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1503XT 1W 15 (13.5-16.5)VDC ±3.3VDC ±152mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1505XT 1W 15 (13.5-16.5)VDC ±5VDC ±100mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1509XT 1W 15 (13.5-16.5)VDC ±9VDC ±56mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1512XT 1W 15 (13.5-16.5)VDC ±12VDC ±42mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1515XT 1W 15 (13.5-16.5)VDC ±15VDC ±34mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A1524XT 1W 15 (13.5-16.5)VDC ±24VDC ±21mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A2403XT 1W 24 (21.6-26.4)VDC ±3.3VDC ±152mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A2405XT 1W 24 (21.6-26.4)VDC ±5VDC ±100mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A2409XT 1W 24 (21.6-26.4)VDC ±9VDC ±56mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A2412XT 1W 24 (21.6-26.4)VDC ±12VDC ±42mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A2415XT 1W 24 (21.6-26.4)VDC ±15VDC ±34mA 2 1500VDC SMD 15.24*11.4*7.25
D1-A2424XT 1W 24 (21.6-26.4)VDC ±24VDC ±21mA 2 1500VDC SMD 15.24*11.4*7.25

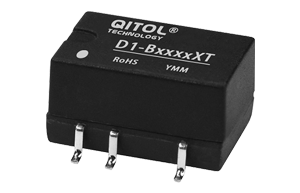

D1-B_XT 1W 3-26.4VDC 展开 展开 1 1500VDC SMD 13.2*11.4*7.25
D1-B0303XT 1W 3.3 (3.0-3.6)VDC 3.3VDC 303mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0305XT 1W 3.3 (3.0-3.6)VDC 5VDC 200mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0309XT 1W 3.3 (3.0-3.6)VDC 9VDC 111mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0312XT 1W 3.3 (3.0-3.6)VDC 12VDC 83mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0315XT 1W 3.3 (3.0-3.6)VDC 15VDC 67mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0324XT 1W 3.3 (3.0-3.6)VDC 24VDC 42mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0503XT 1W 5 (4.5-5.5)VDC 3.3VDC 303mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0505XT 1W 5 (4.5-5.5)VDC 5VDC 200mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0509XT 1W 5 (4.5-5.5)VDC 9VDC 111mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0512XT 1W 5 (4.5-5.5)VDC 12VDC 83mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0515XT 1W 5 (4.5-5.5)VDC 15VDC 67mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B0524XT 1W 5 (4.5-5.5)VDC 24VDC 42mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1203XT 1W 12 (10.8-13.2)VDC 3.3VDC 303mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1205XT 1W 12 (10.8-13.2)VDC 5VDC 200mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1209XT 1W 12 (10.8-13.2)VDC 9VDC 111mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1212XT 1W 12 (10.8-13.2)VDC 12VDC 83mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1215XT 1W 12 (10.8-13.2)VDC 15VDC 67mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1224XT 1W 12 (10.8-13.2)VDC 24VDC 42mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1503XT 1W 15 (13.5-16.5)VDC 3.3VDC 303mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1505XT 1W 15 (13.5-16.5)VDC 5VDC 200mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1509XT 1W 15 (13.5-16.5)VDC 9VDC 111mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1512XT 1W 15 (13.5-16.5)VDC 12VDC 83mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1515XT 1W 15 (13.5-16.5)VDC 15VDC 67mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B1524XT 1W 15 (13.5-16.5)VDC 24VDC 42mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B2403XT 1W 24 (21.6-26.4)VDC 3.3VDC 303mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B2405XT 1W 24 (21.6-26.4)VDC 5VDC 200mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B2409XT 1W 24 (21.6-26.4)VDC 9VDC 111mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B2412XT 1W 24 (21.6-26.4)VDC 12VDC 83mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B2415XT 1W 24 (21.6-26.4)VDC 15VDC 67mA 1 1500VDC SMD 13.2*11.4*7.25
D1-B2424XT 1W 24 (21.6-26.4)VDC 24VDC 42mA 1 1500VDC SMD 13.2*11.4*7.25

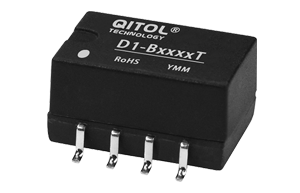

D1-B_T 1W 3-26.4VDC 展开 展开 1 1500VDC SMD 13.2*11.4*7.25
