| 型号 | 缩略图 | 输出功率 | 输入电压 | 输出电压 | 输出电流 | 输出路数 | 隔离电压 | 封装形式 | 外形尺寸mm | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|---|

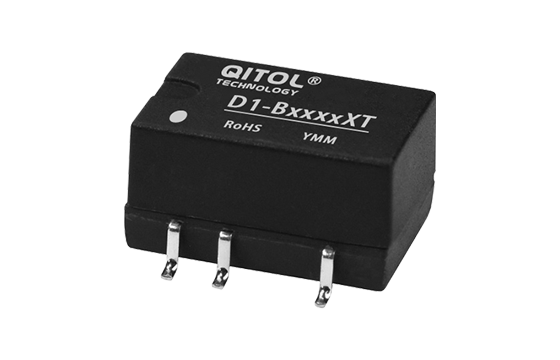

| D1-B0303XT |
|
1W | 3.3 (3.0-3.6)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0305XT |
|
1W | 3.3 (3.0-3.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0309XT |
|
1W | 3.3 (3.0-3.6)VDC | 9VDC | 111mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0312XT |
|
1W | 3.3 (3.0-3.6)VDC | 12VDC | 83mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0315XT |
|
1W | 3.3 (3.0-3.6)VDC | 15VDC | 67mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0324XT |
|
1W | 3.3 (3.0-3.6)VDC | 24VDC | 42mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0503XT |
|
1W | 5 (4.5-5.5)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0505XT |
|
1W | 5 (4.5-5.5)VDC | 5VDC | 200mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0509XT |
|
1W | 5 (4.5-5.5)VDC | 9VDC | 111mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0512XT |
|
1W | 5 (4.5-5.5)VDC | 12VDC | 83mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0515XT |
|
1W | 5 (4.5-5.5)VDC | 15VDC | 67mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B0524XT |
|
1W | 5 (4.5-5.5)VDC | 24VDC | 42mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1203XT |
|
1W | 12 (10.8-13.2)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1205XT |
|
1W | 12 (10.8-13.2)VDC | 5VDC | 200mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1209XT |
|
1W | 12 (10.8-13.2)VDC | 9VDC | 111mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1212XT |
|
1W | 12 (10.8-13.2)VDC | 12VDC | 83mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1215XT |
|
1W | 12 (10.8-13.2)VDC | 15VDC | 67mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1224XT |
|
1W | 12 (10.8-13.2)VDC | 24VDC | 42mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1503XT |
|
1W | 15 (13.5-16.5)VDC | 3.3VDC | 303mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 | ||
| D1-B1505XT |
|
1W | 15 (13.5-16.5)VDC | 5VDC | 200mA | 1 | 1500VDC | SMD | 13.2*11.4*7.25 |
