宽电压输入 DIP
该系列产品为小尺寸型封装， 且具有可持续短路保护功能。有 SIP、DIP、SMD等封装，使得该变换器在应用中更显灵活。 产品特点： 1、 工作温度范围： -40℃ to +85℃ 2、 隔离电压： 1500VDC 3、 符合 EN62368、UL62368 等标准
| 型号 | 缩略图 | 输出功率 | 输入电压 | 输出电压 | 输出电流 | 输出路数 | 隔离电压 | 封装形式 | 外形尺寸mm | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|---|

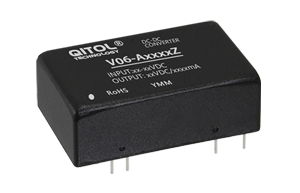

| V06-A_Z |
|
6W | 4.5-75VDC | 展开 | 展开 | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0505Z |
|
6W | 5 (4.5-9)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0509Z |
|
6W | 5 (4.5-9)VDC | ±9VDC | ±333mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0512Z |
|
6W | 5 (4.5-9)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0515Z |
|
6W | 5 (4.5-9)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-A0524Z |
|
6W | 5 (4.5-9)VDC | ±24VDC | ±125mA | 2 | 1500VDC | DIP | 32*20*10.8 | ||

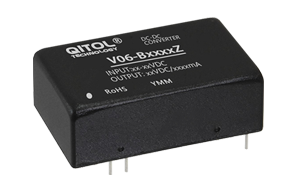

| V06-B_Z |
|
6W | 4.5-75VDC | 展开 | 展开 | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0505Z |
|
6W | 5 (4.5-9)VDC | 5VDC | 1200mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0512Z |
|
6W | 5 (4.5-9)VDC | 12VDC | 500mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||
| V06-B0524Z |
|
6W | 5 (4.5-9)VDC | 24VDC | 250mA | 1 | 1500VDC | DIP | 32*20*10.8 | ||

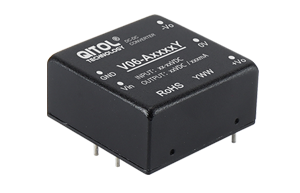

| V06-A_Y |
|
6W | 9-75VDC | 展开 | 展开 | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1205Y |
|
6W | 12 (9-18)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1212Y |
|
6W | 12 (9-18)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1215Y |
|
6W | 12 (9-18)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A1224Y |
|
6W | 12 (9-18)VDC | ±24VDC | ±125mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2405Y |
|
6W | 24 (18-36)VDC | ±5VDC | ±600mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2412Y |
|
6W | 24 (18-36)VDC | ±12VDC | ±250mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2415Y |
|
6W | 24 (18-36)VDC | ±15VDC | ±200mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-A2424Y |
|
6W | 24 (18-36)VDC | ±24VDC | ±125mA | 2 | 1500VDC | DIP | 25.4*25.4*11.7 | ||

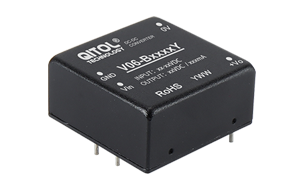

| V06-B_Y |
|
6W | 9-75VDC | 展开 | 展开 | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-B1205Y |
|
6W | 12 (9-18)VDC | 5VDC | 1200mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-B1212Y |
|
6W | 12 (9-18)VDC | 12VDC | 500mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-B1215Y |
|
6W | 12 (9-18)VDC | 15VDC | 400mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V06-B1224Y |
|
6W | 12 (9-18)VDC | 24VDC | 250mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||

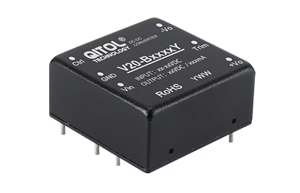

| V20-B_Y |
|
20W | 9-75VDC | 展开 | 展开 | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1203Y |
|
20W | 12 (9-18)VDC | 3.3VDC | 5000mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1205Y |
|
20W | 12 (9-18)VDC | 5VDC | 4000mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1212Y |
|
20W | 12 (9-18)VDC | 12VDC | 1667mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1215Y |
|
20W | 12 (9-18)VDC | 15VDC | 1333mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 | ||
| V20-B1224Y |
|
20W | 12 (9-18)VDC | 24VDC | 833mA | 1 | 1500VDC | DIP | 25.4*25.4*11.7 |
