定电压输入 稳压输出 SMD/SIP
适用于纯数字电路， 一般低频模拟电路， 继电器驱动电路， 数据交换电路等。 主要特点： ◆ 工作温度范围可满足：-40 to +85℃ ◆ 隔离电压可满足：1000VDC-3000VDC ◆ 可持续短路保护 ◆ 符合 EN62368、UL62368 等标准 ——广泛应用于： 工业控制通信、电力、仪器仪表、医疗电子、轨道交通等多个行业。
| 型号 | 缩略图 | 输出功率 | 输入电压 | 输出电压 | 输出电流 | 输出路数 | 隔离电压 | 封装形式 | 外形尺寸mm | 规格书 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|---|

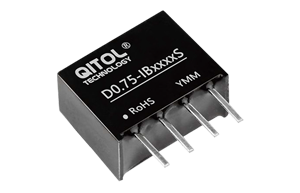

| D0.75-IB_S |
|
0.75W | 4.5-26.4VDC | 展开 | 展开 | 1 | 1500VDC | SIP | 11.6*6.0*10.16 | ||

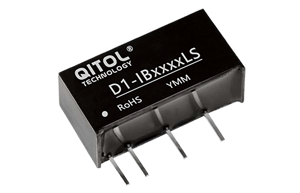

| D1-IB_LS |
|
1W | 4.5-26.4VDC | 展开 | 展开 | 1 | 1500VDC | SIP | 19.6*6.0*10.16 | ||
| D1-IB0303LS |
|
1W | 3 (3.0-3.6)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0305LS |
|
1W | 3 (3.0-3.6)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0309LS |
|
1W | 3 (3.0-3.6)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0312LS |
|
1W | 3 (3.0-3.6)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0315LS |
|
1W | 3 (3.0-3.6)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0503LS |
|
1W | 5 (4.5-5.5)VDC | 3.3VDC | 250mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0505LS |
|
1W | 5 (4.5-5.5)VDC | 5VDC | 200mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0509LS |
|
1W | 5 (4.5-5.5)VDC | 9VDC | 111mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0512LS |
|
1W | 5 (4.5-5.5)VDC | 12VDC | 84mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0515LS |
|
1W | 5 (4.5-5.5)VDC | 15VDC | 67mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||
| D1-IB0524LS |
|
1W | 5 (4.5-5.5)VDC | 24VDC | 43mA | 1 | 1500VDC | SIP | 19.65*6.0*10.16 | ||

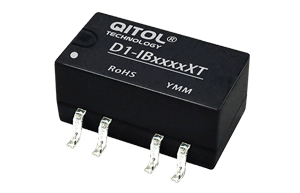

| D1-IB_XT |
|
1W | 4.5-26.4VDC | 展开 | 展开 | 1 | 1500VDC | SIP | 15.24*11.40*7.25 |
