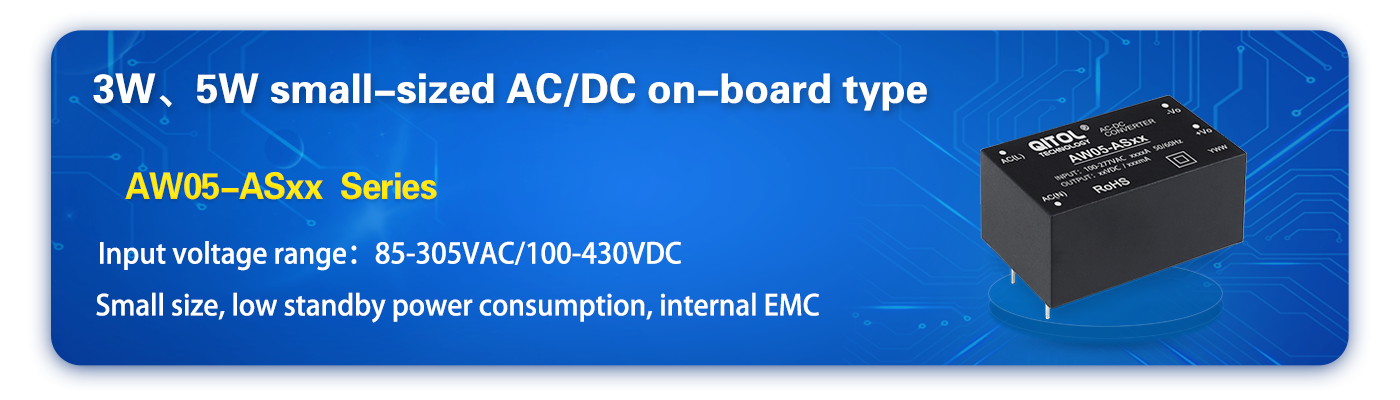

In 2025, we will continue to launch the AW small-sized wide-voltage series and high-performance AC/DC module power supplies. Based on market insights and customer needs, we are now introducing the cost-effective, low-power, and small-sized AW05-ASxx series, with power ratings of 3W and 5W. This series boasts advantages such as ultra-small size, wide operating temperature range, and high cost-effectiveness

一、Product Introduction：

   1) Ultra-small size with high power density, measuring only 32.5*20.5*15mm, featuring a long and narrow design, making it more suitable for certain specialized application spaces;

   2) Wide voltage range: 85-305VAC/100-430VDC, suitable for global voltage requirements, applicable to standard voltages such as 110/220/277VAC;

   3）High reliability：

    ① High isolation insulation withstand voltage of 4000VAC/5mA;

    ② Output short circuit, overcurrent and other protection functions;

    ③ Overcurrent protection - Input 220VAC, overcurrent point ≥140%Io;

    ④ Fully plastic shell, compliant with UL94V-0;

  4）Wide operating temperature range, low power consumption

    ① Operating temperature range：-40℃ to +85℃；

    ② -25~70℃ no derating;

    ③ The power consumption at no load is as low as 0.3W;

  5）Simplify peripheral circuits

    ① A simple enclosure can meet EMI CLASS B requirements;

    ② The simple peripheral can withstand a surge immunity of 2KV and a burst immunity of 4KV;

二、Product Application

    To view more content, please click：      AW03-ASxx

      It is widely applicable in various fields such as industrial control systems, smart homes, intelligent buildings, smart agriculture, household appliances, etc., and is particularly suitable for places with high requirements for volume and EMI.

三、Product Features

   ●  Ultra-wide input voltage range: 85 - 305VAC/100 - 430VDC

   ●  Operating temperature range：-40℃ to +85℃

   ●  Efficiency up to 78%

   ●  High power density

   ●  Low no-load power consumption

   ●  Output short circuit and overcurrent protection

   ●  Fully plastic casing, compliant with UL94V-0

   ●  Complies with IEC62368, UL62368, and EN62368 certifications
