Encapsulated Modules
Encapsulated power supply, power: 3-90W, this type of product has a small size, wide input voltage range, low no-load power consumption, and multiple packaging forms such as DIP and SIP. Global input voltage range, with a voltage range of 85-305VAC ● Meet the corresponding safety regulations and EMC characteristics. ● Meet standards such as IEC62368, UL62368, EN62368, etc ——Mainly used for: Multiple fields including industry, electricity, charging stations, instrumentation, communication, and intelligent buildings.
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Samples Request |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AE |
|
3-5W | 85-264VAC/100-370VDC | Unfold | Unfold | 1 | 4000VDC | DIP | |||
| AE03-AS03 |
|
3W | 85-264VAC/100-370VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS05 |
|
3W | 85-264VAC/100-370VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS09 |
|
3W | 85-264VAC/100-370VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS12 |
|
3W | 85-264VAC/100-370VDC | 12VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS15 |
|
3W | 85-264VAC/100-370VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AE03-AS24 |
|
3W | 85-264VAC/100-370VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||

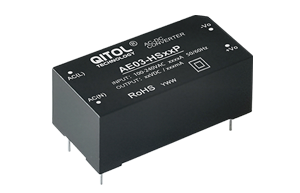

| AE03-HS03P |
|
3W | 85-264VAC/100-370VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 37.5*19*14.5 | ||
| AE03-HS05P |
|
3W | 85-264VAC/100-370VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 37.5*19*14.5 | ||
| AE03-HS09P |
|
3W | 85-264VAC/100-370VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 37.5*19*14.5 | ||
| AE03-HS12P |
|
3W | 85-264VAC/100-370VDC | 12VDC | 250mA | 1 | 4000VDC | DIP | 37.5*19*14.5 | ||
| AE03-HS15P |
|
3W | 85-264VAC/100-370VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 37.5*19*14.5 | ||
| AE03-HS24P |
|
3W | 85-264VAC/100-370VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 37.5*19*14.5 | ||

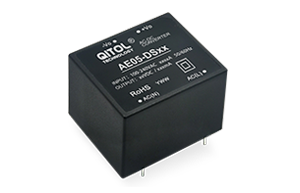

| AE05-DS03 |
|
5W | 85-264VAC/100-370VDC | 3.3VDC | 1500mA | 1 | 4000VDC | DIP | 32.3*27.3*22 | ||
| AE05-DS05 |
|
5W | 85-264VAC/100-370VDC | 5VDC | 1000mA | 1 | 4000VDC | DIP | 32.3*27.3*22 | ||
| AE05-DS09 |
|
5W | 85-264VAC/100-370VDC | 9VDC | 560mA | 1 | 4000VDC | DIP | 32.3*27.3*22 | ||
| AE05-DS12 |
|
5W | 85-264VAC/100-370VDC | 12VDC | 420mA | 1 | 4000VDC | DIP | 32.3*27.3*22 | ||
| AE05-DS15 |
|
5W | 85-264VAC/100-370VDC | 15VDC | 335mA | 1 | 4000VDC | DIP | 32.3*27.3*22 | ||
| AE05-DS24 |
|
5W | 85-264VAC/100-370VDC | 24VDC | 210mA | 1 | 4000VDC | DIP | 32.3*27.3*22 | ||
| AW |
|
2-60W | 85-305VAC/100-430VDC | Unfold | Unfold | 1 | 4000VDC | DIP | |||
| AW02-AS03 |
|
2W | 85-305VAC/100-430VDC | 3.3VDC | 610mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS05 |
|
2W | 85-305VAC/100-430VDC | 5VDC | 400mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS09 |
|
2W | 85-305VAC/100-430VDC | 9VDC | 225mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS12 |
|
2W | 85-305VAC/100-430VDC | 12VDC | 170mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS15 |
|
2W | 85-305VAC/100-430VDC | 15VDC | 135mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS24 |
|
2W | 85-305VAC/100-430VDC | 24VDC | 85mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||

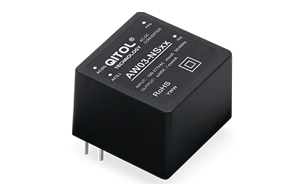

| AW03-NS03 |
|
3W | 85-305VAC/100-430VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS05 |
|
3W | 85-305VAC/100-430VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS09 |
|
3W | 85-305VAC/100-430VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS12 |
|
3W | 85-305VAC/100-430VDC | 12VDC | 250mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS15 |
|
3W | 85-305VAC/100-430VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS24 |
|
3W | 85-305VAC/100-430VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||

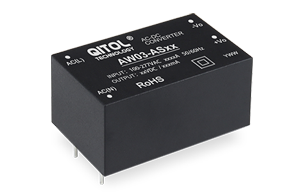

| AW03-AS03 |
|
3W | 85-305VAC/100-430VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS05 |
|
3W | 85-305VAC/100-430VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS09 |
|
3W | 85-305VAC/100-430VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS12 |
|
3W | 85-305VAC/100-430VDC | 12VDC | 250mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS15 |
|
3W | 85-305VAC/100-430VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS24 |
|
3W | 85-305VAC/100-430VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||

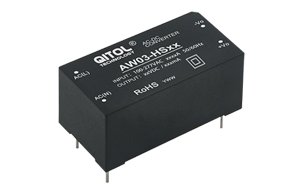

| AW03-HS03 |
|
3W | 85-305VAC/100-430VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW03-HS05 |
|
3W | 85-305VAC/100-430VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW03-HS09 |
|
3W | 85-305VAC/100-430VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW03-HS12 |
|
3W | 85-305VAC/100-430VDC | 12VDC | 250mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW03-HS15 |
|
3W | 85-305VAC/100-430VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW03-HS24 |
|
3W | 85-305VAC/100-430VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW05-AS03 |
|
4W | 85-305VAC/100-430VDC | 3.3VDC | 1210mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW05-AS05 |
|
5W | 85-305VAC/100-430VDC | 5VDC | 1000mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW05-AS09 |
|
5W | 85-305VAC/100-430VDC | 9VDC | 560mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW05-AS12 |
|
5W | 85-305VAC/100-430VDC | 12VDC | 420mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW05-AS15 |
|
5W | 85-305VAC/100-430VDC | 15VDC | 335mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW05-AS24 |
|
5W | 85-305VAC/100-430VDC | 24VDC | 210mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||

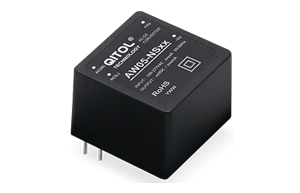

| AW05-NS03 |
|
5W | 85-305VAC/100-430VDC | 3.3VDC | 1515mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW05-NS05 |
|
5W | 85-305VAC/100-430VDC | 5VDC | 1000mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW05-NS09 |
|
5W | 85-305VAC/100-430VDC | 9VDC | 560mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW05-NS12 |
|
5W | 85-305VAC/100-430VDC | 12VDC | 420mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW05-NS15 |
|
5W | 85-305VAC/100-430VDC | 15VDC | 335mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW05-NS24 |
|
5W | 85-305VAC/100-430VDC | 24VDC | 210mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||

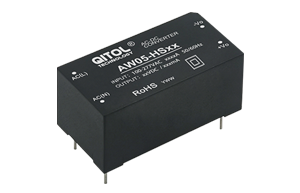

| AW05-HS03 |
|
4W | 85-305VAC/100-430VDC | 3.3VDC | 1210mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW05-HS05 |
|
5W | 85-305VAC/100-430VDC | 5VDC | 1000mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW05-HS09 |
|
5W | 85-305VAC/100-430VDC | 9VDC | 560mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW05-HS12 |
|
5W | 85-305VAC/100-430VDC | 12VDC | 420mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW05-HS15 |
|
5W | 85-305VAC/100-430VDC | 15VDC | 335mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW05-HS24 |
|
5W | 85-305VAC/100-430VDC | 24VDC | 210mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||

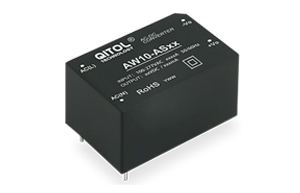

| AW10-AS03 |
|
8.6W | 85-305VAC/100-430VDC | 3.3VDC | 2600mA | 1 | 4000VDC | DIP | 40*25.5*21 | ||
| AW10-AS05 |
|
10W | 85-305VAC/100-430VDC | 5VDC | 2000mA | 1 | 4000VDC | DIP | 40*25.5*21 | ||
| AW10-AS09 |
|
10W | 85-305VAC/100-430VDC | 9VDC | 1115mA | 1 | 4000VDC | DIP | 40*25.5*21 | ||
| AW10-AS12 |
|
10W | 85-305VAC/100-430VDC | 12VDC | 835mA | 1 | 4000VDC | DIP | 40*25.5*21 | ||
| AW10-AS15 |
|
10W | 85-305VAC/100-430VDC | 15VDC | 670mA | 1 | 4000VDC | DIP | 40*25.5*21 | ||
| AW10-AS24 |
|
10W | 85-305VAC/100-430VDC | 24VDC | 420mA | 1 | 4000VDC | DIP | 40*25.5*21 | ||
| AW10-BS03 |
|
10W | 85-305VAC/100-430VDC | 3.3VDC | 3000mA | 1 | 4000VDC | DIP | 45.7*25.4*21.5 | ||
| AW10-BS05 |
|
10W | 85-305VAC/100-430VDC | 5VDC | 2000mA | 1 | 4000VDC | DIP | 45.7*25.4*21.5 | ||
| AW10-BS09 |
|
10W | 85-305VAC/100-430VDC | 9VDC | 1115mA | 1 | 4000VDC | DIP | 45.7*25.4*21.5 | ||
| AW10-BS12 |
|
10W | 85-305VAC/100-430VDC | 12VDC | 835mA | 1 | 4000VDC | DIP | 45.7*25.4*21.5 | ||
| AW10-BS15 |
|
10W | 85-305VAC/100-430VDC | 15VDC | 670mA | 1 | 4000VDC | DIP | 45.7*25.4*21.5 | ||
| AW10-BS24 |
|
10W | 85-305VAC/100-430VDC | 24VDC | 420mA | 1 | 4000VDC | DIP | 45.7*25.4*21.5 | ||

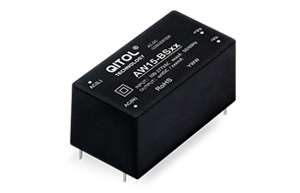

| AW15-BS03 |
|
13.2W | 85-305VAC/100-430VDC | 3.3VDC | 4000mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW15-BS05 |
|
15W | 85-305VAC/100-430VDC | 5VDC | 3000mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW15-BS09 |
|
15W | 85-305VAC/100-430VDC | 9VDC | 1670mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW15-BS12 |
|
15W | 85-305VAC/100-430VDC | 12VDC | 1250mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW15-BS15 |
|
15W | 85-305VAC/100-430VDC | 15VDC | 1000mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW15-BS24 |
|
15W | 85-305VAC/100-430VDC | 24VDC | 625mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-AS03 |
|
15W | 85-305VAC/100-430VDC | 3.3VDC | 4550mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-AS05 |
|
20W | 85-305VAC/100-430VDC | 5VDC | 4000mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-AS09 |
|
20W | 85-305VAC/100-430VDC | 9VDC | 2225mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-AS12 |
|
20W | 85-305VAC/100-430VDC | 12VDC | 1670mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-AS15 |
|
20W | 85-305VAC/100-430VDC | 15VDC | 1335mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-AS24 |
|
20W | 85-305VAC/100-430VDC | 24VDC | 835mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||

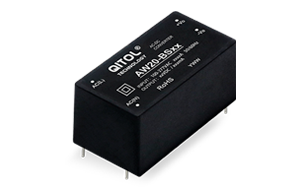

| AW20-BS03 |
|
15W | 85-305VAC/100-430VDC | 3.3VDC | 4550mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-BS05 |
|
20W | 85-305VAC/100-430VDC | 5VDC | 4000mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-BS09 |
|
20W | 85-305VAC/100-430VDC | 9VDC | 2225mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-BS12 |
|
20W | 85-305VAC/100-430VDC | 12VDC | 1670mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-BS15 |
|
20W | 85-305VAC/100-430VDC | 15VDC | 1335mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||
| AW20-BS24 |
|
20W | 85-305VAC/100-430VDC | 24VDC | 835mA | 1 | 4000VDC | DIP | 52.4*27.2*24 | ||

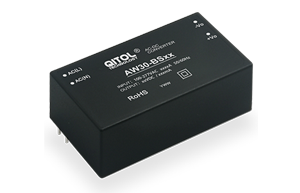

| AW30-BS03 |
|
20W | 85-305VAC/100-430VDC | 3.3VDC | 6100mA | 1 | 4000VDC | DIP | 69.5*39*24 | ||
| AW30-BS05 |
|
30W | 85-305VAC/100-430VDC | 5VDC | 6000mA | 1 | 4000VDC | DIP | 69.5*39*24 | ||
| AW30-BS12 |
|
30W | 85-305VAC/100-430VDC | 12VDC | 2500mA | 1 | 4000VDC | DIP | 69.5*39*24 | ||
| AW30-BS15 |
|
30W | 85-305VAC/100-430VDC | 15VDC | 2000mA | 1 | 4000VDC | DIP | 69.5*39*24 | ||
| AW30-BS24 |
|
30W | 85-305VAC/100-430VDC | 24VDC | 1250mA | 1 | 4000VDC | DIP | 69.5*39*24 | ||
| AW30-BS48 |
|
30W | 85-305VAC/100-430VDC | 48VDC | 625mA | 1 | 4000VDC | DIP | 69.5*39*24 | ||
| AH |
|
5-10W | 100-450VAC/120-630VDC | Unfold | Unfold | 1 | 3000VDC | DIP | |||
| AH05-YS05P |
|
5W | 100-450VAC/120-630VDC | 5VDC | 1000mA | 1 | 3000VDC | DIP | 40*25.5*21 | ||
| AH05-YS09P |
|
5W | 100-450VAC/120-630VDC | 9VDC | 560mA | 1 | 3000VDC | DIP | 40*25.5*21 | ||
| AH05-YS12P |
|
5W | 100-450VAC/120-630VDC | 12VDC | 420mA | 1 | 3000VDC | DIP | 40*25.5*21 | ||
| AH05-YS24P |
|
5W | 100-450VAC/120-630VDC | 24VDC | 210mA | 1 | 3000VDC | DIP | 40*25.5*21 | ||
| AD |
|
5-60W | 85-305VAC/100-430VDC | Unfold | Unfold | 1 | 4000VDC | DIP | |||

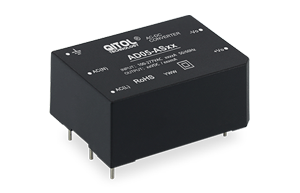

| AD05-AS03 |
|
4W | 85-305VAC/100-430VDC | 3.3VDC | 1200mA | 1 | 4000VDC | DIP | 48.5*36*20.5 | ||
| AD05-AS05 |
|
5W | 85-305VAC/100-430VDC | 5VDC | 1000mA | 1 | 4000VDC | DIP | 48.5*36*20.5 | ||
| AD05-AS09 |
|
5W | 85-305VAC/100-430VDC | 9VDC | 560mA | 1 | 4000VDC | DIP | 48.5*36*20.5 | ||
| AD05-AS12 |
|
5W | 85-305VAC/100-430VDC | 12VDC | 420mA | 1 | 4000VDC | DIP | 48.5*36*20.5 | ||
| AD05-AS15 |
|
5W | 85-305VAC/100-430VDC | 15VDC | 335mA | 1 | 4000VDC | DIP | 48.5*36*20.5 | ||
| AD05-AS24 |
|
5W | 85-305VAC/100-430VDC | 24VDC | 210mA | 1 | 4000VDC | DIP | 48.5*36*20.5 |
-
