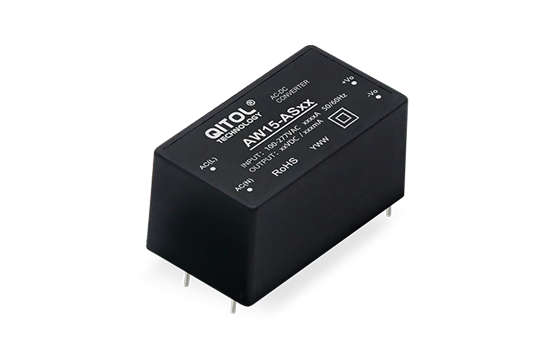

AW Small Size Wide Voltage Series
AW small-sized wide voltage series, with a small volume and a global wide voltage range input. ● Full voltage range 85-305VAC/100-430VDC ● Small size, high efficiency, low power consumption. ——Applied to Smart home, building, industrial control Electricity, new energy, charging stations, instruments and meters.
| Model | Diagram | Power | Input | Vout | Iout | No.of Outputs | Isolation | Package | Dimension(mm) | Datasheet | Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AW02-AS03 |
|
2W | 85-305VAC/100-430VDC | 3.3VDC | 610mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS05 |
|
2W | 85-305VAC/100-430VDC | 5VDC | 400mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS09 |
|
2W | 85-305VAC/100-430VDC | 9VDC | 225mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS12 |
|
2W | 85-305VAC/100-430VDC | 12VDC | 170mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS15 |
|
2W | 85-305VAC/100-430VDC | 15VDC | 135mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW02-AS24 |
|
2W | 85-305VAC/100-430VDC | 24VDC | 85mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-NS03 |
|
3W | 85-305VAC/100-430VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS05 |
|
3W | 85-305VAC/100-430VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS09 |
|
3W | 85-305VAC/100-430VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS12 |
|
3W | 85-305VAC/100-430VDC | 12VDC | 250mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS15 |
|
3W | 85-305VAC/100-430VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-NS24 |
|
3W | 85-305VAC/100-430VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 25.4*25.4*17.6 | ||
| AW03-AS03 |
|
3W | 85-305VAC/100-430VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS05 |
|
3W | 85-305VAC/100-430VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS09 |
|
3W | 85-305VAC/100-430VDC | 9VDC | 335mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS12 |
|
3W | 85-305VAC/100-430VDC | 12VDC | 250mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS15 |
|
3W | 85-305VAC/100-430VDC | 15VDC | 200mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-AS24 |
|
3W | 85-305VAC/100-430VDC | 24VDC | 125mA | 1 | 4000VDC | DIP | 32.5*20.5*15 | ||
| AW03-HS03 |
|
3W | 85-305VAC/100-430VDC | 3.3VDC | 910mA | 1 | 4000VDC | DIP | 38.5*19.6*17 | ||
| AW03-HS05 |
|
3W | 85-305VAC/100-430VDC | 5VDC | 600mA | 1 | 4000VDC | DIP | 38.5*19.6*17 |
-
